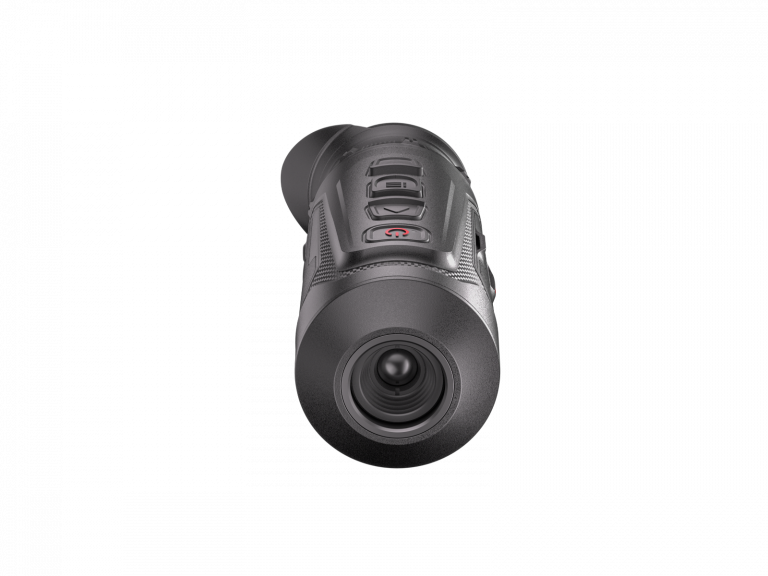

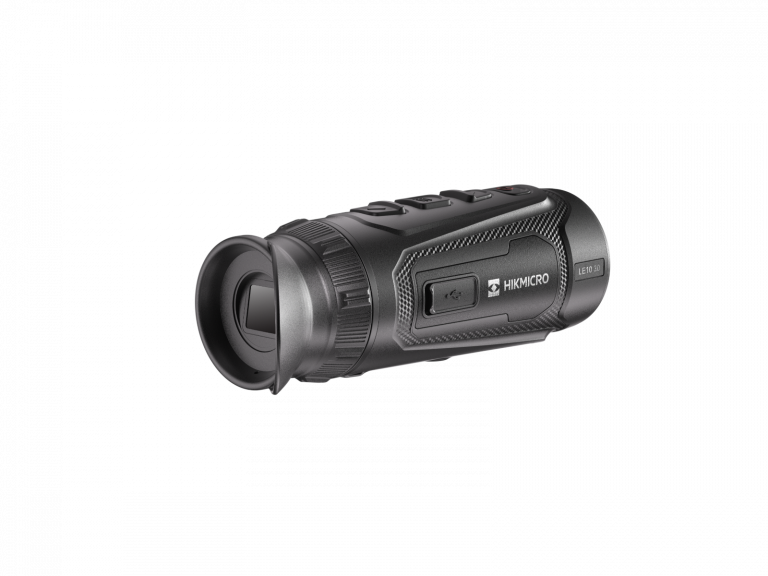

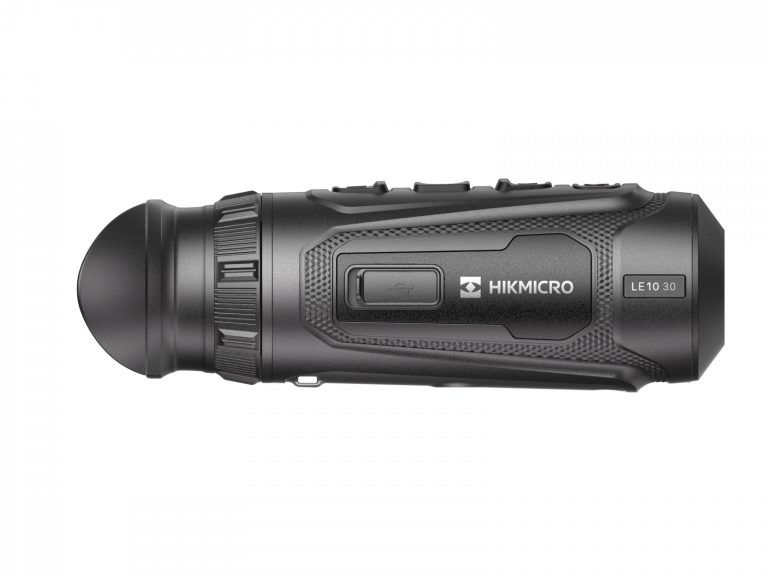

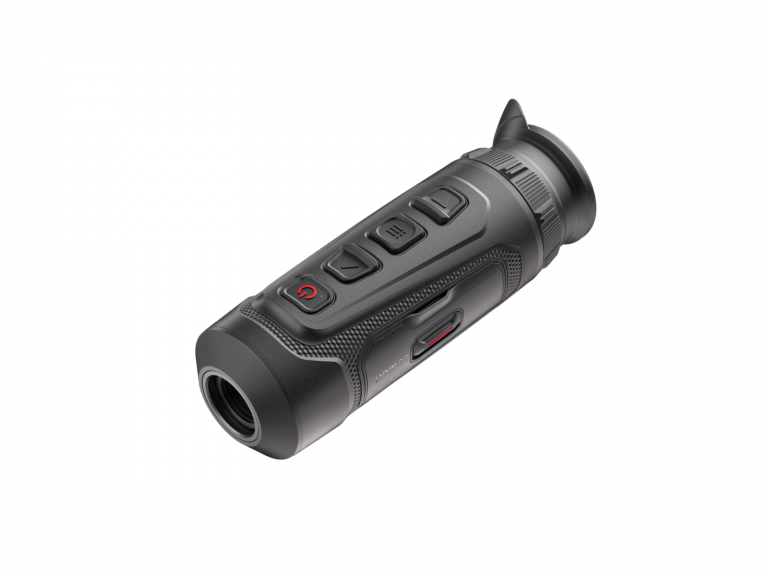

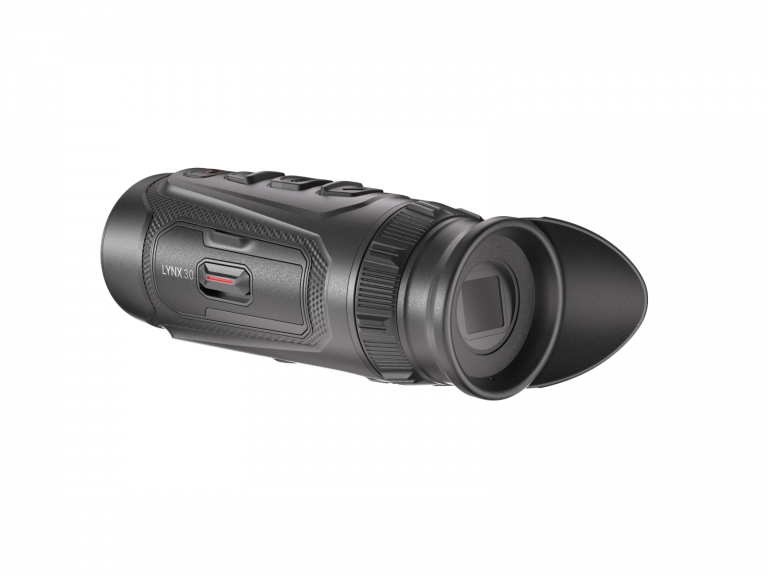

HIKMICRO Lynx 3.0 10mm Thermal Monocular LE10
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LE10 is designed for professionals seeking compact, high-value thermal imaging for close-range observation. Equipped with a 256x192 thermal detector and a 9.7mm F1.0 lens, it provides a 1.4x base magnification and an 18° field of view, delivering clear, detailed imaging across a detection range of up to 500 metres.
Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LE10 ensures exceptional image sharpness and stability, even in challenging environments. The HIKMICRO Shutterless Image System (HSIS) guarantees silent, seamless image processing, enabling uninterrupted operation during critical tasks such as wildlife observation, surveillance, or search and rescue.
Built for efficiency and endurance, the LE10 features a replaceable 18650 battery delivering up to 5.5 hours of runtime at -20°C. Compact and lightweight at just 291.5 grams, it’s pocket-sized yet robust enough for demanding field use. This is the ideal thermal monocular for users who require reliability, precision, and value in one professional package.
SPECS
- Max. Resolution 256 × 192
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm to 14 μm
- NETD Less than 20 mK (@25°C), F#=1.0
- Lens (Focal Length) 9.7 mm, F1.0
- Focus Mode Focus Free
- Min. Focusing Distance 3.4 m
- Magnification 1.4 × - 11.2 × (8×)
- Field of View (H × V), Degrees / m @100 m 18.0° × 13.6° / 31.7 m × 23.8 m
- Detection Range 500 m
- Display 1024 × 768, 0.39 inch, AMOLED
- Contrast Adjustment Yes
- Brightness Adjustment Yes
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5 D to +3 D
- Tone Adjustment Cold, Warm
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Sync Pro Yes
- Storage Built-in EMMC (64GB)
- Record Video Yes
- Capture Snapshot Yes
- Local Album Yes
- Standby Mode Yes
- PIP Yes
- Hotspot 2.4/5 G WiFi Waveband
- Hot Track Yes
- Distance Measurement Yes
- Audio Recording Yes
- Battery Type Replaceable and rechargeable 18650 battery
- Protection Level IP67
- Weight 291.5 g
SKU#HM-LE103.0 HIKMICRO
